CoExtrusion – The process to convert two or more materials into a single piece

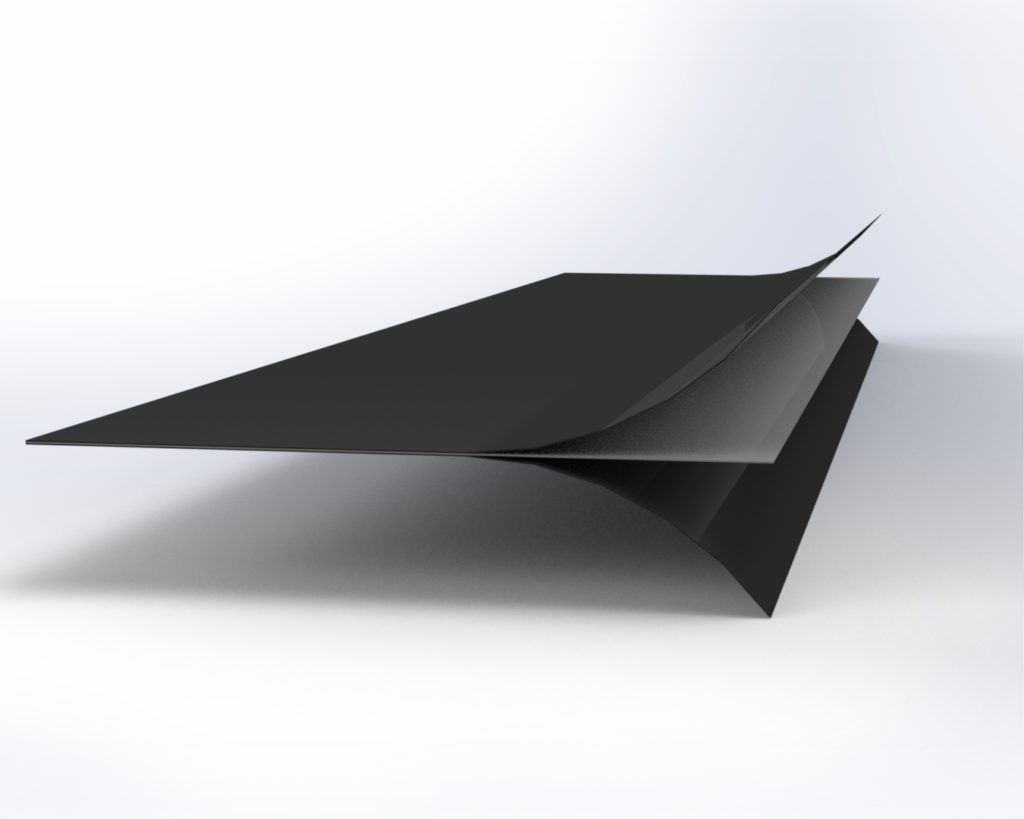

  • Co Extrusion Render

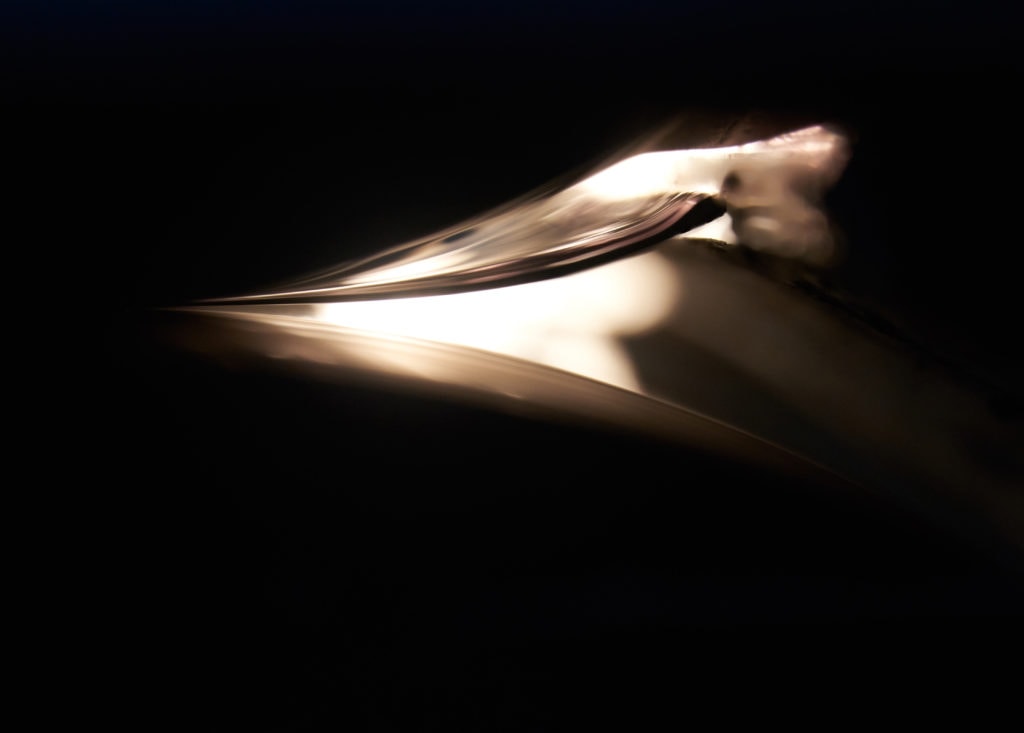

  • Material Running
  • Co Extrusion

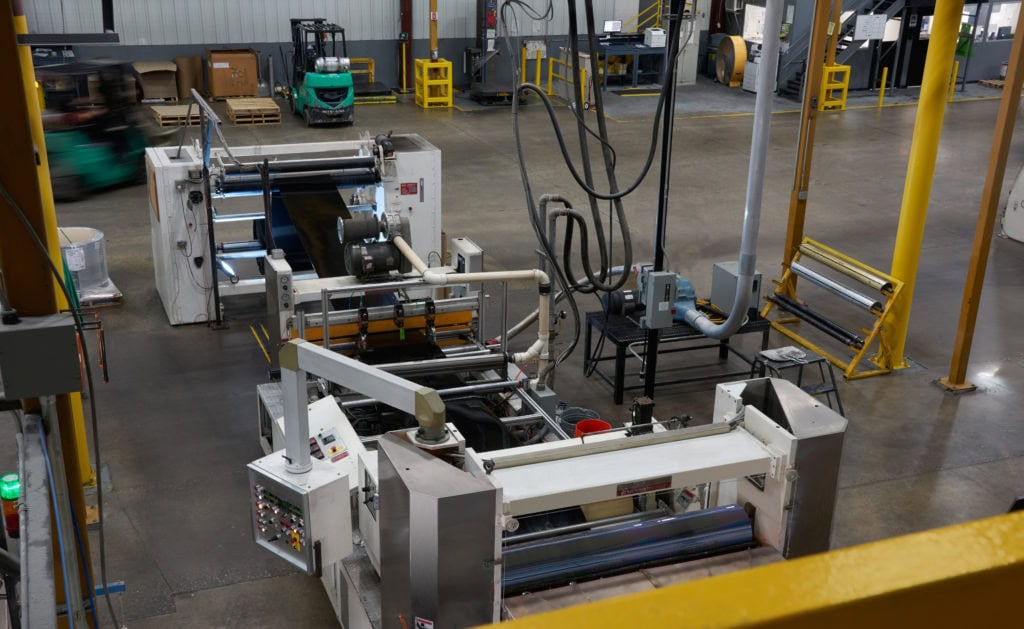

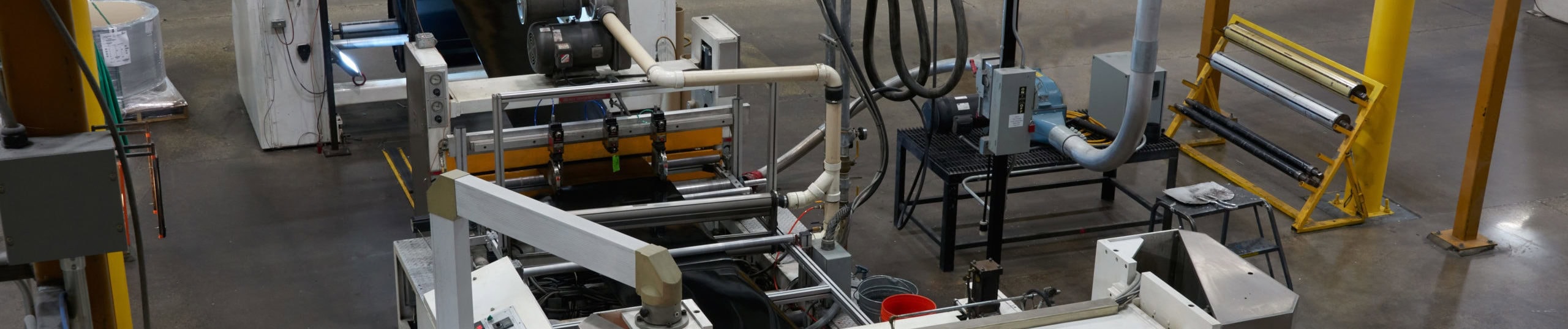

  • Production Line











For your unique and custom projects, we at Advanced Extrusion, Inc. are capable of producing up to 7 layer structures in the creation of your material.  Tailored to meet your Oxygen Transfer Rates (OTR), and Moisture Transfer Rates (MTR). ShurSeal™ available to assist in your sealing property requirements.











RFQ/RFI

Detailed Specifications:

General Capabilities

  • J.I.T.

  • Contract

  • O.E.M.

Industry Focus

  • Aerospace
    Automotive
    Consumer Packaging

  • Industrial Packaging
    Food Packaging
    Construction

  • Electrical
    Medical
    Transportation

Resistance Characteristics

  • Acid
    Strong Oxidizer
    Alkalis

  • Hydrocarbon Solvent
    Alcohol
    Fat

  • Grease
    Oil

Colors/Styles

  • Custom Colors

Coating

  • Anti-Static

  • Anti-Fog

Industry Standards

  • AIB
    ANSI
    ASME

  • ASTM
    FDA Certified
    GMP

  • ISO
    Kosher Certified
    Mil-Spec

Thermoforming

  • Braze Fabrication

Extrusion Product

  • Cut Sheet

  • Roll Stock

Extrusion Features

  • Flexible
    Food Grade

  • High Temperature
    Thin Gage

  • High Impact
    Multi Color

Additional Services Provided

  • Matte Finish
    Online Gaging
    Topical Coating

  • Sheet Finish

      • Translucent



      • Opaque



      Transparent
Gauge

  • Min: 0.012 in (0.305 mm)

  • Max: 0.050 in (1.27 mm)

Width

  • Min: 15 in (381 mm)

  • Max: 54 in (1371 mm)

Core Sizes

  • 3 in

  • 6 in

Roll O.D.

  • Min: 29 in (736.6 mm)

  • Max: 40 in (1016 mm)

Specific Gravity

  • 1.335 grams/cm2

Shrinkage

  • 2.0% to 5.0%

Yield

  • 20,810 in2/lb/Mil of thickness

Tensile Strength at Yield

  • Min: 8,000 PSI

  • Max: 9,000 PSI

Elongation

  • Min: 200%

  • Max: 400%

Flexural Modulus

  • Min: 325,000 PSI

  • Max: 370,000 PSI

Intrinsic Viscosity

  • >= 0.74

Light Transmission

  • >=90%

Haze

  • >=2%

Clarity

  • >=99%

Temperature Range

  • Min: 0° F (-18° C)

  • Max: 150° F (66° C)

Gauge Tolerance (+/-)

  • 5%
